SaleShortie Subwoofers
DC Audio Shortie Subwoofers
Sizes Available: 10/12 Inch Model
Ohms Available: D2 & D4 Models
Power Handling: 500 Watts RMS 1000 Watts Peak

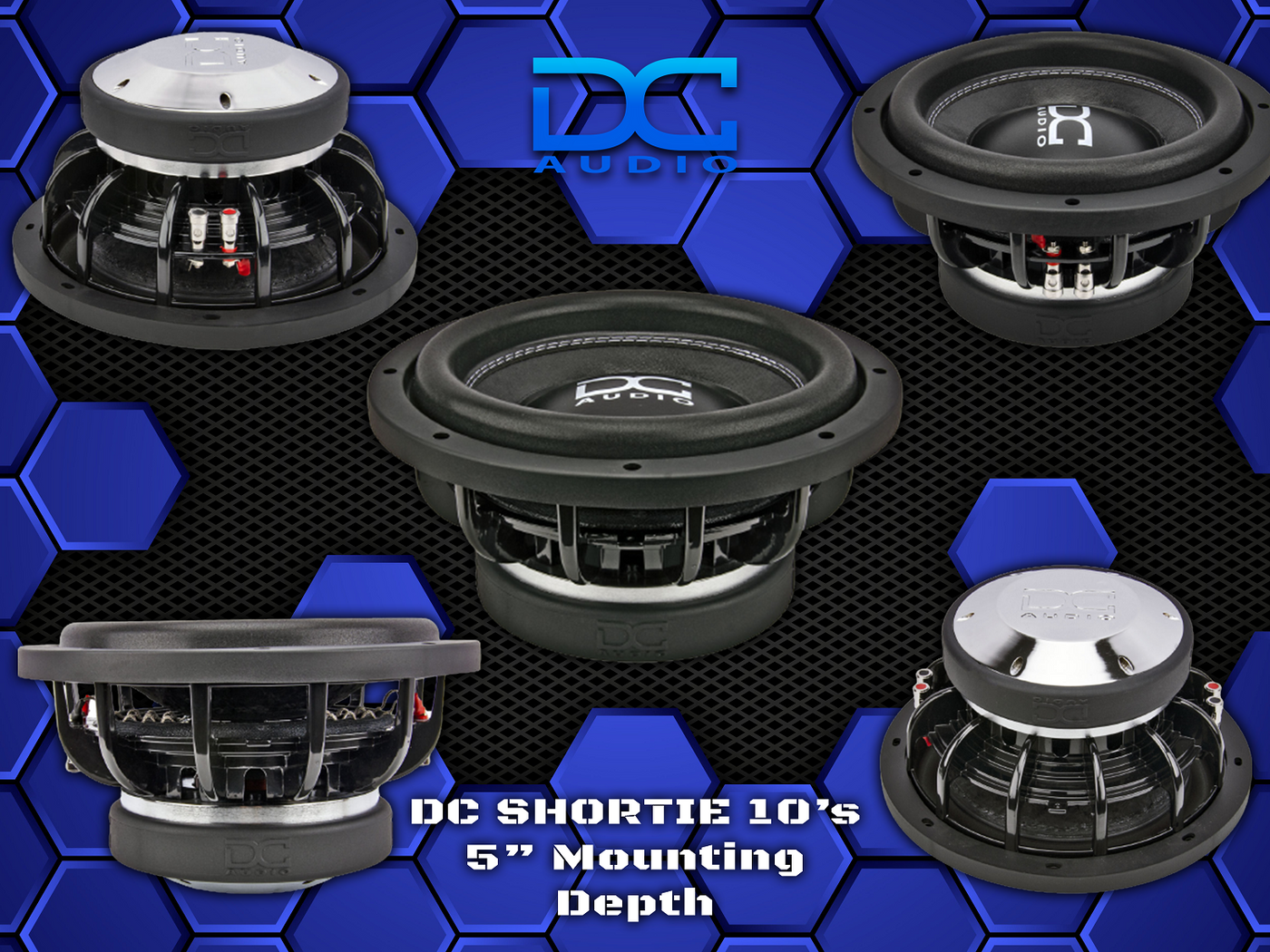

DC Audio Shortie
Got limited Mounting Depth?? DC has a answer It starts out with a single slug FEA optimized motor. A chrome top plate and T yoke. 2.5" voice coil, Glossy Black stamped Steel Frame, Side Motor Venting, push terminals and a rating suggestion of 500w RMS/1000w peak power handling.
This sub works great in sealed or ported enclosures.
Key Features
• Stitched surround and paper cone assembly
• Rubber Motor boot with DC Logo
• Polypropylene dust cover with DC logo
• Heavy duty interweaved tinsel lead wire sewn to the spider
• Cast Aluminum black frame
• FEA analyzed and optimized motor assembly - Fully CNC machined with Machined side venting
• Rubber mounting gasket
• Chrome spring loaded push terminals
• 2.5” voice coil
| 10" | 12" | |
|---|---|---|
| Mounting Depth | 5" | 5.48" |
| Mounting Hole Diameter | 9.3" | 11.0" |
| Outside Driver Diameter | 11" | 12.5" |
| VC Diameter | 2.5" | 2.5" |
| Displacement | .11 ft | .14 |
| Power Handling rms/peak | 500/1000 | 500/1000 |
| Ohm Options | d2/d4 | d2/d4 |
| Sd | 346cm | 552cm |
| Vas | 7.17L | 18.47L |
| Cms | 121.53um/n | 47.065u M?N |
| Mms | 218g | 301.6g |
| Fs | 45.5Hz | 41.9Hz |
| Bl | 15.67N/A | 19.067N/A |
| Re | 7 Ohm | 4 Ohm |
| Le | mH | mH |
| Qms | 4.382 |
Driver data
Technical information
Published specifications and enclosure guidance for planning your system.
General specifications
| RMS power handling | 500 W |
|---|---|
| Peak power handling | 1000 W |
| Voice coil size | 2.5 inch |
| Voice coil configuration | Dual 2 Ω; Dual 4 Ω |
| XMAX (one way) | 10 inch: 14 mm; 12 inch: 14 mm |
Thiele/Small (T/S) parameters
Measurement condition: Manufacturer values labeled by size; test-coil impedance and wiring are not specified.
| Re — DC resistance | 10 inch: 7 Ω; 12 inch: 4 Ω |
|---|---|
| Fs — Free-air resonance | 10 inch: 45.5 Hz; 12 inch: 41.9 Hz |
| Qes — Electrical Q | 10 inch: 0.819; 12 inch: 0.728 |
| Qms — Mechanical Q | 10 inch: 4.382; 12 inch: 5.128 |
| Qts — Total Q | 10 inch: 0.690; 12 inch: 0.633 |
| Sd — Effective piston area | 10 inch: 346 cm²; 12 inch: 552 cm² |
| Vas — Equivalent compliance volume | 10 inch: 7.17 L; 12 inch: 18.47 L |
| BL — Motor force factor | 10 inch: 15.678 N/A; 12 inch: 19.067 N/A |
| Mms — Moving mass | 10 inch: 218.5 g; 12 inch: 301.6 g |
| Sensitivity | 10 inch: 82 dB @ 1 W; 12 inch: 84.1 dB @ 1 W |
Enclosure recommendations
| Recommended ported enclosure volume | 10 inch: 1 ft³; 12 inch: 1.5 ft³ |
|---|---|
| Recommended sealed enclosure volume | 10 inch: 0.5 ft³; 12 inch: 1 ft³ |
Send us your subwoofer model, available space and performance goals.
Technical data source: View manufacturer specifications
