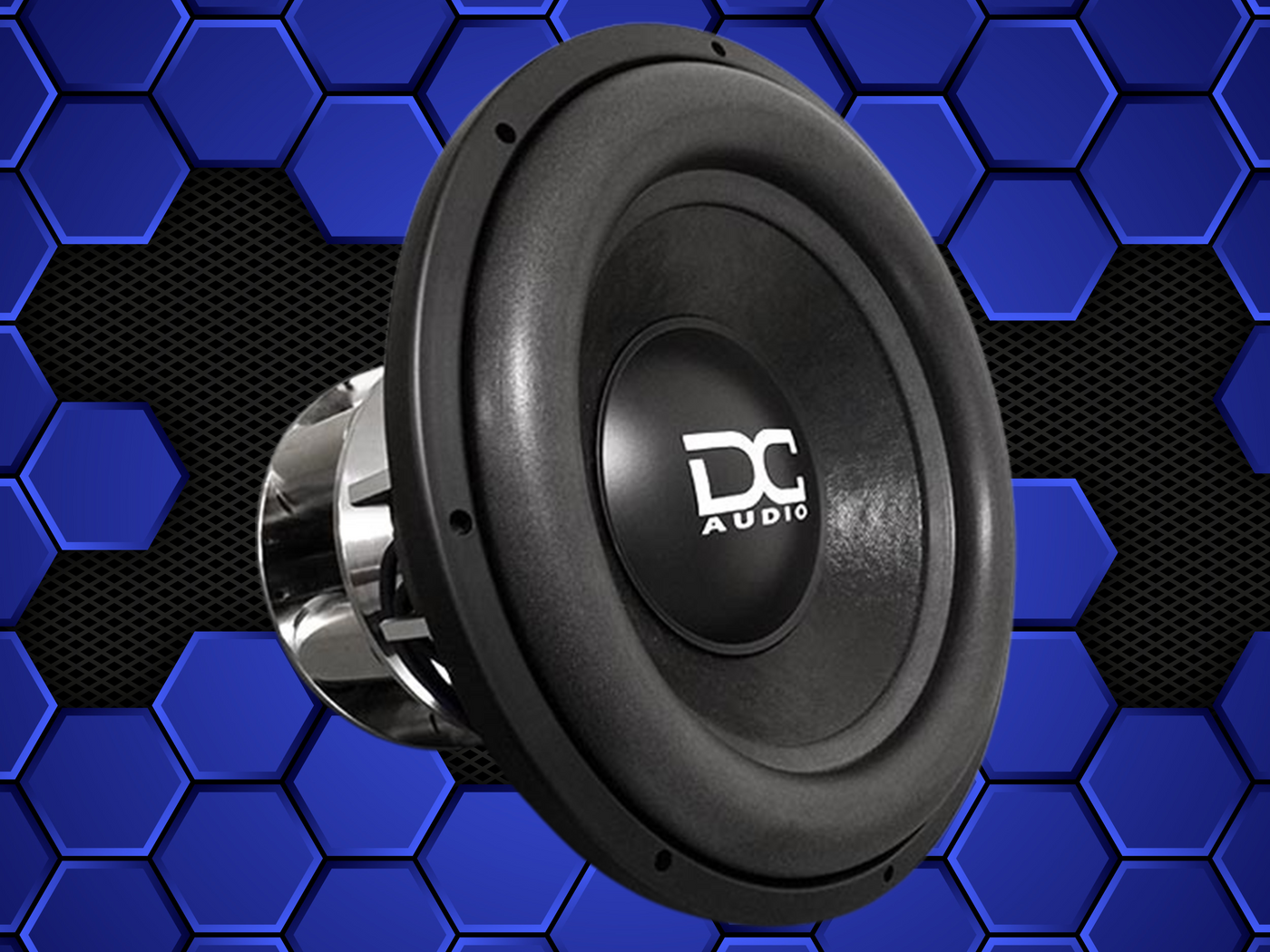

NEO Elite 4.0 Subwoofers
**HAND BUILT IN THE USA**
BUILD TIME 7-14 DAYS
NEO Elite 4.0 Subwoofer Line
2024 Cone Change : Now Comes Stock with LR Cone / Surround
4500 Watts RMS 9000 Watts Peak
Available in 15 and 18" Models
The Neo Elite is DC Audio’s 4” Coil Neo powered subwoofer. Why, because people asked for it and we thought it would be a fun project, that’s exactly what it turned out to be. The Neo Elite is a subwoofer that’s happy doing SPL but is even more suited for high power ground pounder applications. If you're in the market for a subwoofer that can take a lot of power get loud and crush lows, then this could be the one for you. The Neo Elite comes with a Large flat wound 4” Coil, 10” Spaced Spiders, The DC Frame, 6 columns of NEO, multi tensile leads sewn to the top spider and a High-Performance cone and surround.
- Extremely strong kraft pulp fiber reinforced cone
- Wide Long Throw foam surround
- Dome propylene dust cover with White DC logo
- 10” OD Spaced Spiders
- Extra heavy duty sewn tinsel lead wire
- Cast DC Series aluminum black frame / no invert mount
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- 8 AWG OFC Direct leads
- 4.0” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum former
Click HERE to get a Subwoofer Box
T/S Parameters
| 15" | 18" | |
|---|---|---|
| Mounting Depth | 12" | 13" |
| Mounting Hole Diameter | 14.25" | 16.90" |
| Outside Driver Diameter | 15.7" | 18.5" |
| VC Diameter | 4.0" | 4.0" |
| Displacement | .23 ft | .26ft |
| Power Handling rms/peak | 4500/9000 | 4500/9000 |
| Ohm Options | d.7/d1/d2/d4 | d.7/d1/d2/d4 |
| Sd | 815 cm | 1159 cm |
| Vas | N/A L | 67.10 L |
| Cms | N/A um/n | 34.01 um/n |
| Mms | N/A g | 807.49 g |
| Fs | N/A Hz | 30.36 Hz |
| Bl | N/A N/A | 40.55 N/A |
| Re | N/A Ohm | 3.9 Ohm |
| Le | N/A mH | 4.70 mH |
| Qms | N/A | 8.08 |
| Qes | N/A | 0.36 |
| Qts | N/A | 0.35 |
| Xmax | 34mm | 34mm |
| Ref SPL @1 watt | N/A db | 88.83 db |
| Suggest Sealed Box | N/A ft | N/A ft |
| Suggested Ported Box | 3.25 ft | 5.5 ft |
Driver data
Technical information
Published specifications and enclosure guidance for planning your system.
General specifications
| RMS power handling | 4500 W |
|---|---|
| Peak power handling | 9000 W |
| Voice coil size | 4 inch |
| Voice coil configuration | Dual 0.7 Ω; Dual 1 Ω; Dual 1.4 Ω; Dual 2 Ω |
| XMAX (one way) | 15 inch: 34 mm; 18 inch: 34 mm |
| Build lead time | 7–14 days (supplier estimate) |
Thiele/Small (T/S) parameters
Measurement condition: Supplier values labeled by driver size. Test-coil impedance and measurement wiring are not specified; values are not universal across coil options.
| Re — DC resistance | 18 inch: 3.9 Ω |
|---|---|
| Fs — Free-air resonance | 18 inch: 30.36 Hz |
| Qes — Electrical Q | 18 inch: 0.36 |
| Qms — Mechanical Q | 18 inch: 8.08 |
| Qts — Total Q | 18 inch: 0.35 |
| Le — Voice coil inductance | 18 inch: 4.7 mH |
| Sd — Effective piston area | 15 inch: 815 cm²; 18 inch: 1159 cm² |
| Vas — Equivalent compliance volume | 18 inch: 67.1 L |
| BL — Motor force factor | 18 inch: 40.55 N/A |
| Mms — Moving mass | 18 inch: 807.49 g |
| Cms — Mechanical compliance | 18 inch: 34.01 µm/N |
| Sensitivity | 18 inch: 88.83 dB @ 1 W |
Enclosure recommendations
| Recommended ported enclosure volume | 15 inch: 3.25 ft³; 18 inch: 5.5 ft³ |
|---|
