Subwoofer

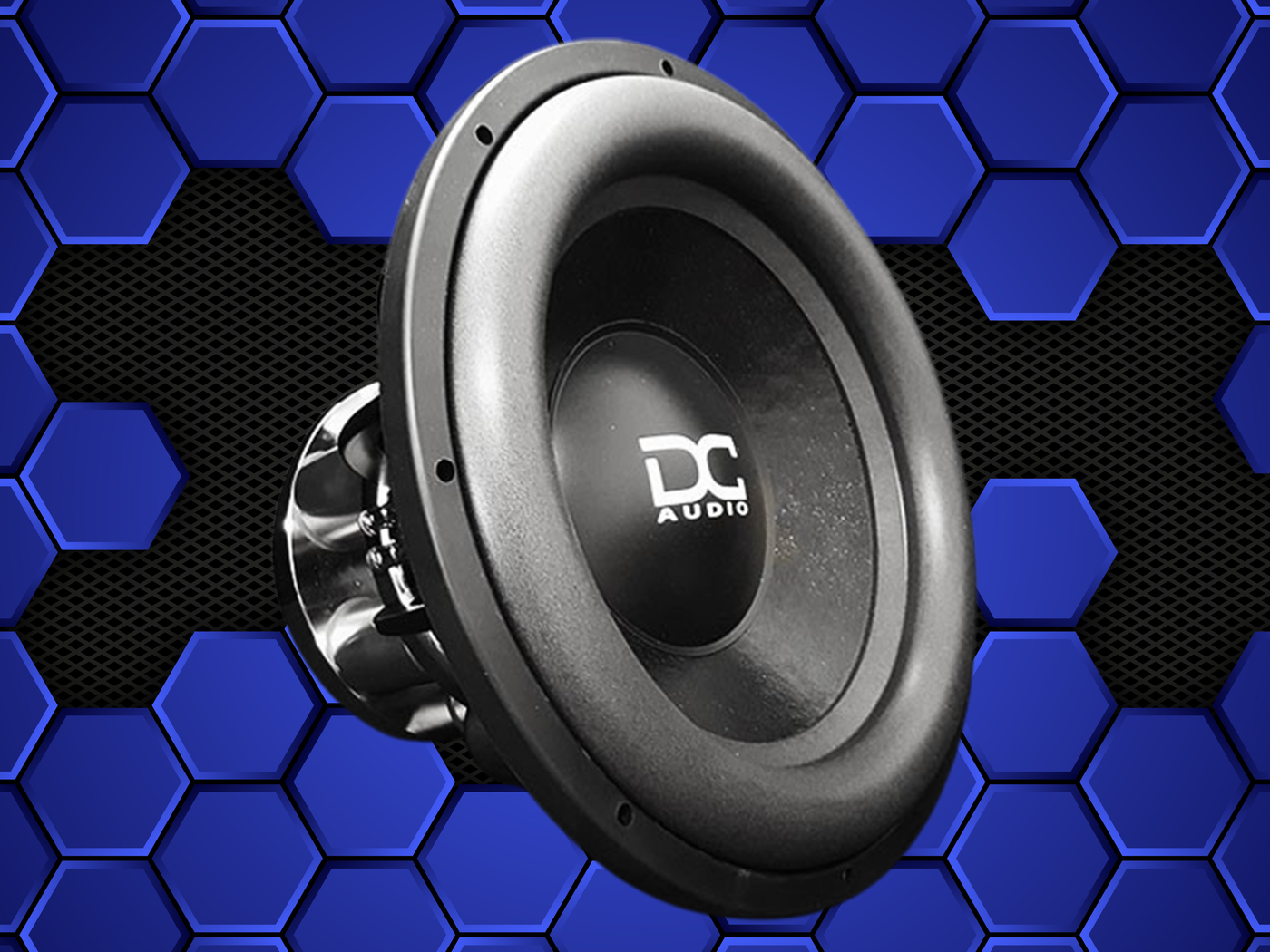

NEO 3.0 Subwoofers
From $999.99
to $1,079.99
Brand:DC Audio
Category:Subwoofer
SKU:sku-51122903318840
In Stock
**HAND BUILT IN THE USA**
BUILD TIME 7-14 DAYS
Neo 3.0 Subwoofer Line
2024 Cone Change : Now Comes Stock with TR Cone / Surround
2200 Watts RMS 4400 Watts Peak
Available in 15 and 18" Models
Subwoofer Description
The NEO 3.0 is a subwoofer built for SPL!! If you're looking for a SPL Championship proven subwoofer, here you go.
Custom Coil and Spider Configurations to get every tenth of a db out of it available.
Key Features
- FULL NEO Columns (not partials set ontop of steel pillars)
- Extremely rigid TR paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- 8” OD semi cup progressive roll spiders
- Dual extra heavy duty interweaved tinsel lead wire
- Cast aluminum black frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- 4 AWG Chrome spring loaded push terminals
- 3" 8 layer hi-temp flat wound aluminum voice coil
Click HERE to get a Subwoofer Box
T/S Parameters
| 15" | 18" | |
|---|---|---|
| Mounting Depth | 9" | 11" |
| Mounting Hole Diameter | 14" | 16.75" |
| Outside Driver Diameter | 15.7" | 18.5" |
| VC Diameter | 3.0" | 3.0" |
| Displacement | .23ft | .26ft |
| Power Handling rms/peak | 2200/4400 | 2200/4400 |
| Ohm Options | d.7/d1/d2/d4 | d.7/d1/d2/d4 |
| Sd | 791 cm | 1159 cm |
| Vas | L | L |
| Cms | Mm/n | Mm/n |
| Mms | g | g |
| Fs | Hz | Hz |
| Bl | N/A | N/A |
| Re | Ohm | Ohm |
| Le | mH | mH |
| Qms | ||
| Qes | ||
| Qts | ||
| Xmax | 23mm | 23mm |
| Ref SPL @1 watt | db | db |
| Suggest Sealed Box | ft | ft |
| Suggested Ported Box | 3.0 ft | 5.5 ft |
Driver data
Technical information
Published specifications and enclosure guidance for planning your system.
General specifications
| RMS power handling | 2200 W |
|---|---|
| Peak power handling | 4400 W |
| Voice coil size | 3 inch |
| Voice coil configuration | 0.5-SS; Dual 0.7 Ω; Dual 1 Ω; Dual 1.4 Ω; Dual 2 Ω; Dual 4 Ω |
| XMAX (one way) | 15 inch: 23 mm; 18 inch: 23 mm |
| Build lead time | 7–14 days (supplier estimate) |
Thiele/Small (T/S) parameters
Measurement condition: Supplier values labeled by driver size. Test-coil impedance and measurement wiring are not specified; values are not universal across coil options.
| Sd — Effective piston area | 15 inch: 791 cm²; 18 inch: 1159 cm² |
|---|
Enclosure recommendations
| Recommended ported enclosure volume | 15 inch: 3 ft³; 18 inch: 5.5 ft³ |
|---|
