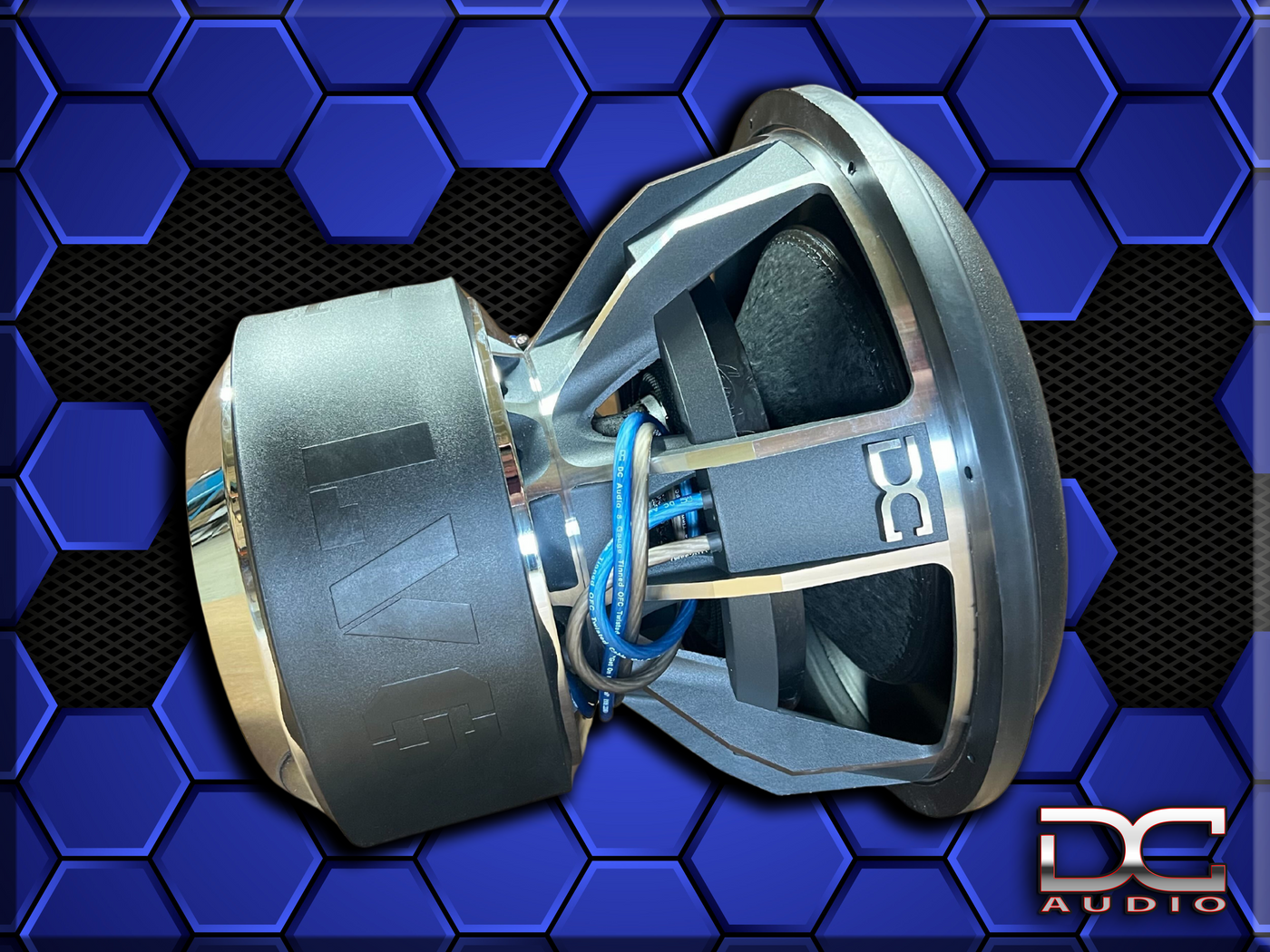

Level 6 M6 Subwoofers
**HAND BUILT IN THE USA**
hand built in 7-14 days
DC Audio Level 6 Elite Subwoofer
Model: level 6 M6 New for 2025
Sizes Available: 15 and 18 Inch Models
Power Handling: 4500 Watts RMS 9000 Watts Peak
The Lv6m6 Elite is DC Audio’s 4” Coil Beast. It has evolved into what most big builds are after, a sub that can take lots of power and Crush Out the Lows!!
With a world that has access to amplifiers of today's size we knew we needed a subwoofer that could keep up. A Large flat wound 4” Coil and 10” Spaced Spiders with Plenty of Xmax clearance is what we have to offer in the Level 6!!
The new Lv6m6 Elite will find itself at home in the SPL lanes or slappin down your hometowns cruise strip.
To really step it up with this driver take a look at the Carbon Fiber cone and dustcap options available for it.
New features include a wire cut top plate, Full inner Aluminum sleeve shortning ring, Longer pole and more rearward coil clearance. We have also tooled a new Motor boot with a embossed DC Audio and LV6 Logo on it.
Key Features
Extremely strong kraft pulp fiber reinforced cone
Wide Long Throw foam surround
Dome propylene dust cover with White DC logo
10” OD Spaced Spiders
Extra heavy duty sewn tinsel lead wire
Cast DC Series aluminum black frame / no invert mount
FEA analyzed and optimized motor assembly – Fully CNC machined
Rubber mounting gasket
8 AWG OFC Direct leads
4.0” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum former
Rubber magnet cover
Aluminum shortening ring
Extended Pole
Click HERE to get a Subwoofer Box
T/S Parameters
| 15" | 18" | |
|---|---|---|
| Mounting Depth | 12.5" | 13.5" |
| Mounting Hole Diameter | 14.25" | 16.90" |
| Outside Driver Diameter | 15.7" | 18.5" |
| VC Diameter | 4.0" | 4.0" |
| Displacement | .24 ft | .27ft |
| Power Handling rms/peak | 4500/9000 | 4500/9000 |
| Ohm Options | d.7/d1/d1.4/d2/d4 | d.7/d1/d1.4/d2/d4 |
| Sd | 815 cm | 1159 cm |
| Vas | 46.3L | 88.75L |
| Cms | 0.057 mm/n | 00.049 mm/n |
| Mms | 583.6 g | 748.83 g |
| Fs | 27.59 Hz | 26.37 Hz |
| Bl | 36.41 N/A | 36.15 N/A |
| Re | 4.77 Ohm | 5.39 Ohm |
| Le | 2.02 mH | 4.64 mH |
| Qms | 5.726 | 6.871 |
| Qes | 0.3643 | 0.5119 |
| Qts | 0.3425 | 0.4764 |
| Xmax | 32mm | 32mm |
| Ref SPL @1 watt | 86.16 db | 86.92 db |
| Suggest Sealed Box | N/A ft | N/A ft |
| Suggested Ported Box | 3.5 ft | 6.0 ft |
Driver data
Technical information
Published specifications and enclosure guidance for planning your system.
General specifications
| RMS power handling | 4500 W |
|---|---|
| Peak power handling | 9000 W |
| Voice coil size | 4 inch |
| Voice coil configuration | Dual 0.7 Ω; Dual 1 Ω; Dual 1.4 Ω; Dual 2 Ω |
| XMAX (one way) | 15 inch: 32 mm; 18 inch: 32 mm |
| Build lead time | 7–14 days (supplier estimate) |
Thiele/Small (T/S) parameters
Measurement condition: Supplier values labeled by driver size. Test-coil impedance and measurement wiring are not specified; values are not universal across coil options.
| Re — DC resistance | 15 inch: 4.77 Ω; 18 inch: 5.39 Ω |
|---|---|
| Fs — Free-air resonance | 15 inch: 27.59 Hz; 18 inch: 26.37 Hz |
| Qes — Electrical Q | 15 inch: 0.3643; 18 inch: 0.5119 |
| Qms — Mechanical Q | 15 inch: 5.726; 18 inch: 6.871 |
| Qts — Total Q | 15 inch: 0.3425; 18 inch: 0.4764 |
| Le — Voice coil inductance | 15 inch: 2.02 mH; 18 inch: 4.64 mH |
| Sd — Effective piston area | 15 inch: 815 cm²; 18 inch: 1159 cm² |
| Vas — Equivalent compliance volume | 15 inch: 46.3 L; 18 inch: 88.75 L |
| BL — Motor force factor | 15 inch: 36.41 N/A; 18 inch: 36.15 N/A |
| Mms — Moving mass | 15 inch: 583.6 g; 18 inch: 748.83 g |
| Cms — Mechanical compliance | 15 inch: 0.057 mm/N; 18 inch: 0.049 mm/N |
| Sensitivity | 15 inch: 86.16 dB @ 1 W; 18 inch: 86.92 dB @ 1 W |
Enclosure recommendations
| Recommended ported enclosure volume | 15 inch: 3.5 ft³; 18 inch: 6 ft³ |
|---|
Send us your subwoofer model, available space and performance goals.
